RD3712: 1930-1934 Ford Coupes Untrimmed Headliners

APPLICATIONS

This kit is designed for builders who need a molded and formed ABS plastic headliner for vehicles without a direct-fit application, or for those who have modified their sheet metal for a true custom look.

Examples:

• ’31–’34 Chevrolet Coupes – Use the Adapter Kit with RD3712 (Ford ’30–’34 Molded Headliner) to adapt for proper fit.

• ’31–’34 Ford Coupes & Trucks – Adapter Kit required only for chopped tops when the cab is extended. Standard chops only lower the roof and do not enlarge the cab’s sheet metal/wood.

• ’37–’46 Chevrolet Trucks – Requires Adapter Kit for chopped tops.

• ’47–’55 (early) Chevrolet Trucks – Requires Adapter Kit for chopped tops.

• ’38–’47 Ford Trucks – Requires Adapter Kit for chopped tops.

• ’48–’52 Ford Trucks – Requires Adapter Kit for chopped tops.

• ’53–’56 Ford Trucks – Requires Adapter Kit for chopped tops.

• ’61–’66 Ford Trucks – Requires Adapter Kit for chopped tops.

For extended cab applications on any of the above, you will need two headliners plus an Adapter Kit. (Please call first — remember our motto: “Call Twice, Cut Once.”)

KIT FUNCTION

• Expands a molded ABS headliner by up to 2-1/2” in both length and width.

  • Length = distance from windshield to rear window

  • Width = distance from door to door

Note: This extension covers more than 90% of chopped-top or adapted applications. If your project requires more, call us — our priority is helping builders tackle what was once considered “black magic.”

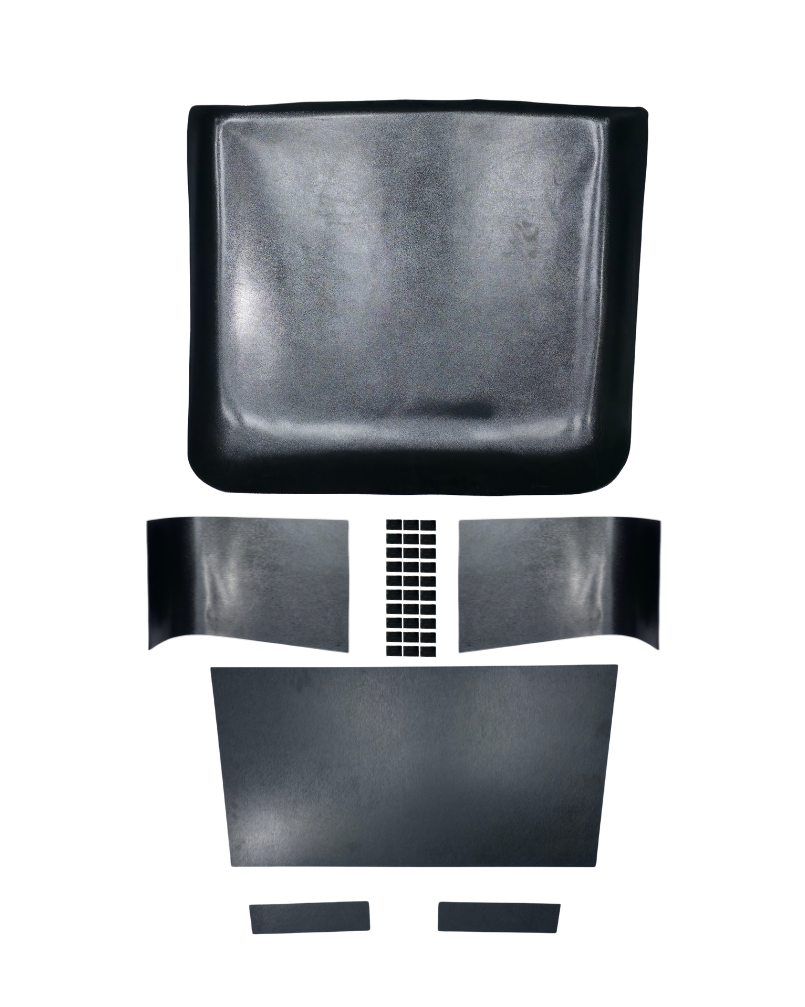

This Kit Includes:

• 1 Center Headliner Panel
• 1 Molded Quarter Panel DRVR Side
• 1 Molded Quarter Panel PASS Side
• 1 Glue Strip 32x15
